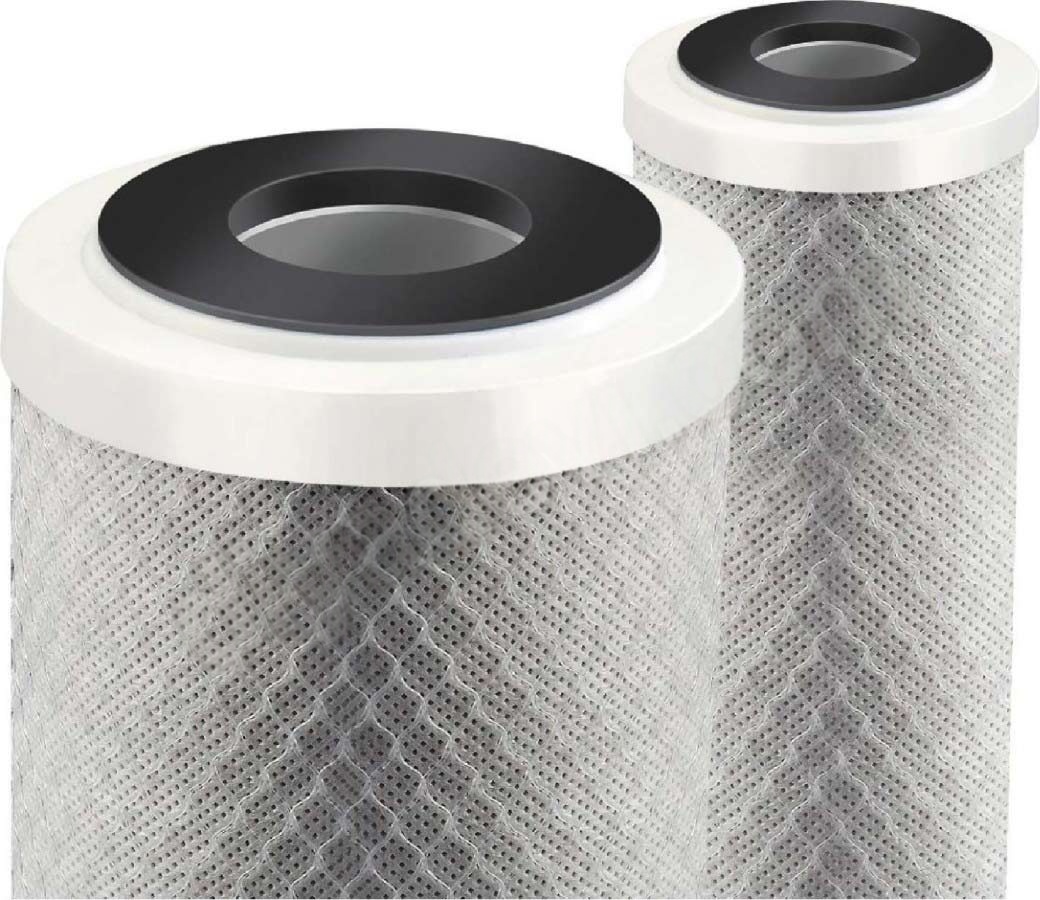

Carbon Cartridge
Carbon Cartridge
Carbon block cartridges are designed for high effective filtration of water for certain VOC’S, pesticides, chlorine, odour & test & sediment reduction down to 5 micron. These cartridges are manufactured entirely from FDA compliance materials. They are suitable for potable water filtration, as well as many industrial, commercial & food service applications. Its nominal filtration rating makes it excellent for polishing filters of pre filters in applications which require very fine filtration. These cartridges are effective at filtering giardia & cryptosporidium cysts from potable drinking water
Key Features:
- High Iodine value
- High flow rate
- High dirt holding capacity
- Greater chlorine removal efficiency
- Good oil adsorption medium Type of carbon filters
- Activated coal carbon
- Coconut shell carbon
Specifications:
| Sizes | 10”, 20” 30”, 40” |
| Micron Rating | 5, 10 Micron |
| Standard Outside Diameter | 64mm, 116 mm |
| Inner Diameter | 28 mm |
Construction:
| Filter media | Bonded Powdered activated carbon |
| End caps | Polypropylene |
| Outer wrap | Polypropylene |
| Netting | Polypropylene |
| Gaskets | Buna N |
Applications:
| Food & Beverages | Bottled water, Flavors, Polishing Lines |
| Pharmaceuticals | Membrane prefilter |
| Water Treatment | Membrane Protection, Resin Trap |
| Edible Oil | |
| Mineral Oil |
