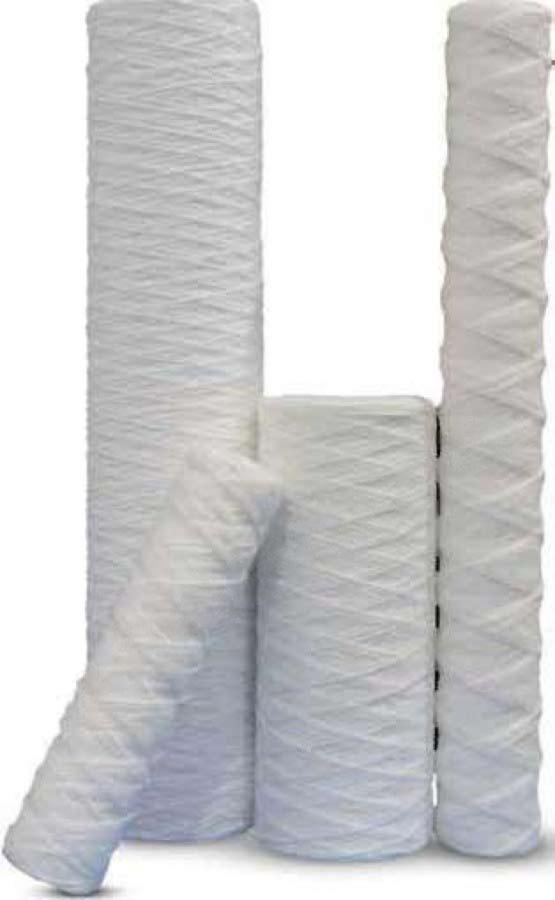

Polystring Filter Cartridge
Polystring Filter Cartridge
Advantages:
- Polypropylene string or cotton string or Glass fiber reeled on the polypropylene core or S S Core.
- This is designed for applications where reliable and consisted depth filtration is required.
- High flow rates with excellent ability to retain dirt.
- Good chemical compatibility and low price
- Suitable for high temperature and pressure process.v
- Easy installation and replacement.
- Low maintenance cost.
- Available in wide range of materials and micron ratings
Key Features:
- Standard and customized sizes to fit most housings.
- Filtration rating from 1 to 100 Micron.
- High strength & pressure resistance.
- Manufactured in continuous length.
- Full range of sizes from 10” to 60” Length.
- Excellent flow with low pressure drop.
- High dirt holding capacity.
- Compatible with a wide range of fluids.
- NSF & FDA approved filter cartridges are available.
Specifications:
| Pore size(µm) | 1-100 |
| Outer Diameter(mm) | 63mm/110mm |
| Length (inch) | 10,20,30,40 |
| Type | DOE |
Materials Of Construction:
- String: Polypropylene/Cotton/Glass fiber
- Core :Polypropylene /SS.
Technical Data:
| Effective filtration area (10″) | 0.04m ² |
| Max. differential pressure | 4.2 bar. at 25°C |
| pH value | 1-13 |
| Max working temperature | |
| Polypropylene | 8o°C |
| Cotton | 150°C |
| Glass Fiber | 300°C |
Applications:
| General Process Industry | Prefiltration for water purification. |
| Food & Beverage Industry | Coarse filtration for all kinds of beverage and wine like edible oil, coco butter, sugar, saccharin, starch syrup, soft drink, beer. |
| Chemical Industry | Acid, base, organic solvent, plating solution, magnetic coating, polyester resin. |
| Oil & Gas Industry | Amine, glycol, lubricating oil. |
